Dashboard and monitoring

GPUlayer has a built-in web dashboard for day-to-day job management, and a Prometheus /metrics endpoint for Grafana and alerting.

Web dashboard

On a server started with gpulayer up, open https://<server>:8470/ui/ and sign in with a client token (gpulayer up prints one; gpulayer token create alice --role submitter makes more). For local jobs, run:

bash

gpulayer dashboard          # opens http://127.0.0.1:8471/ui/ already signed in

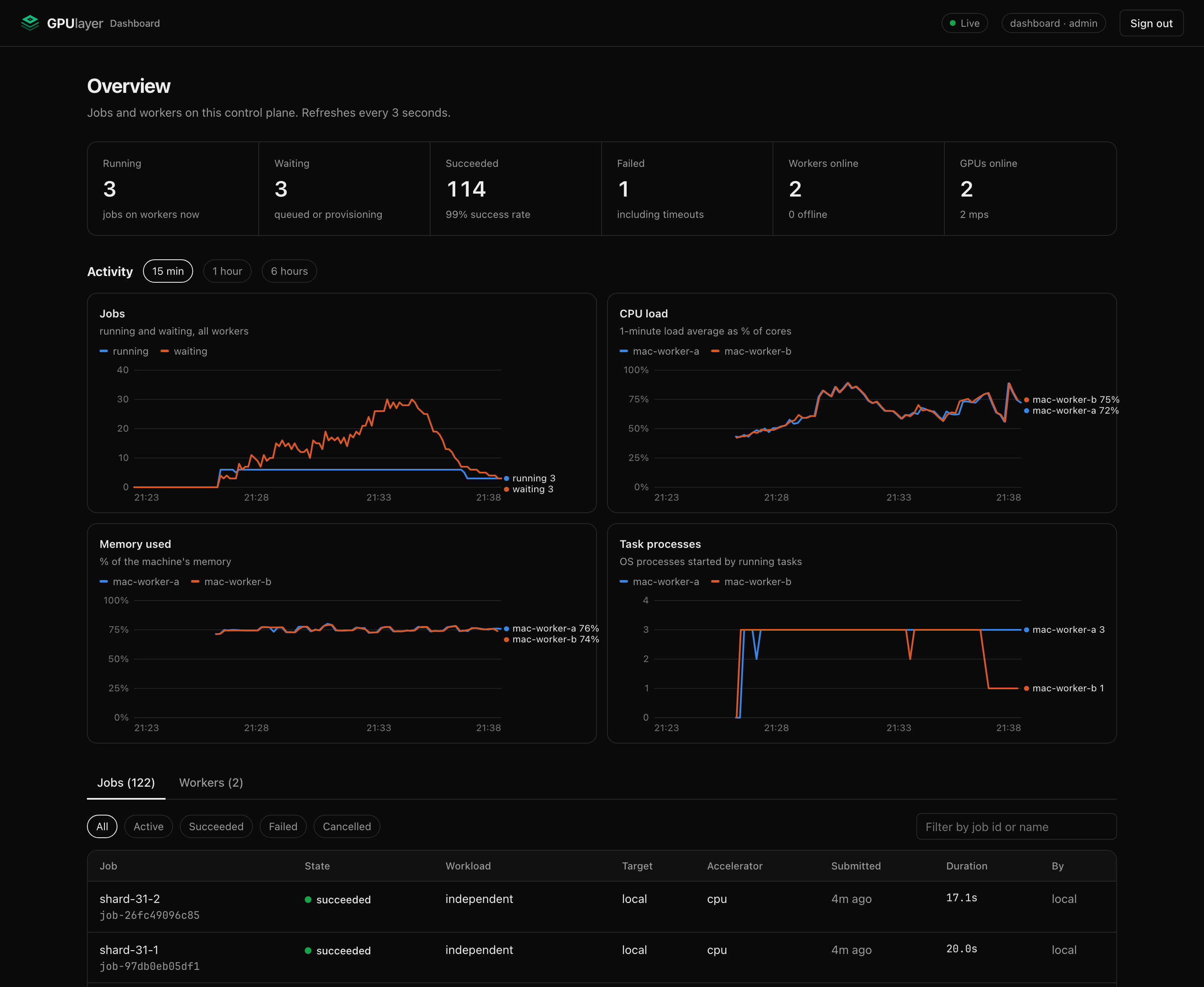

Dashboard overview

The dashboard shows:

running, waiting, succeeded and failed jobs, workers online and GPUs online;
activity charts over the last 15 minutes, hour or 6 hours: jobs running and waiting, CPU load, memory used and task processes per worker, and GPU utilisation on NVIDIA workers. Hover a chart to read every series at that moment;
the jobs table, filterable by state and searchable by id or name;
for each job: what it runs, its resources, why it was placed where it was (or why no worker qualified), its tasks per node, live logs, lifecycle events and the full JobSpec, plus a Cancel button for admins and for the job's submitter;
workers with their GPUs, frameworks, CPU and memory, running tasks and last heartbeat, plus Revoke for admins. Offline workers are hidden until you ask for them.

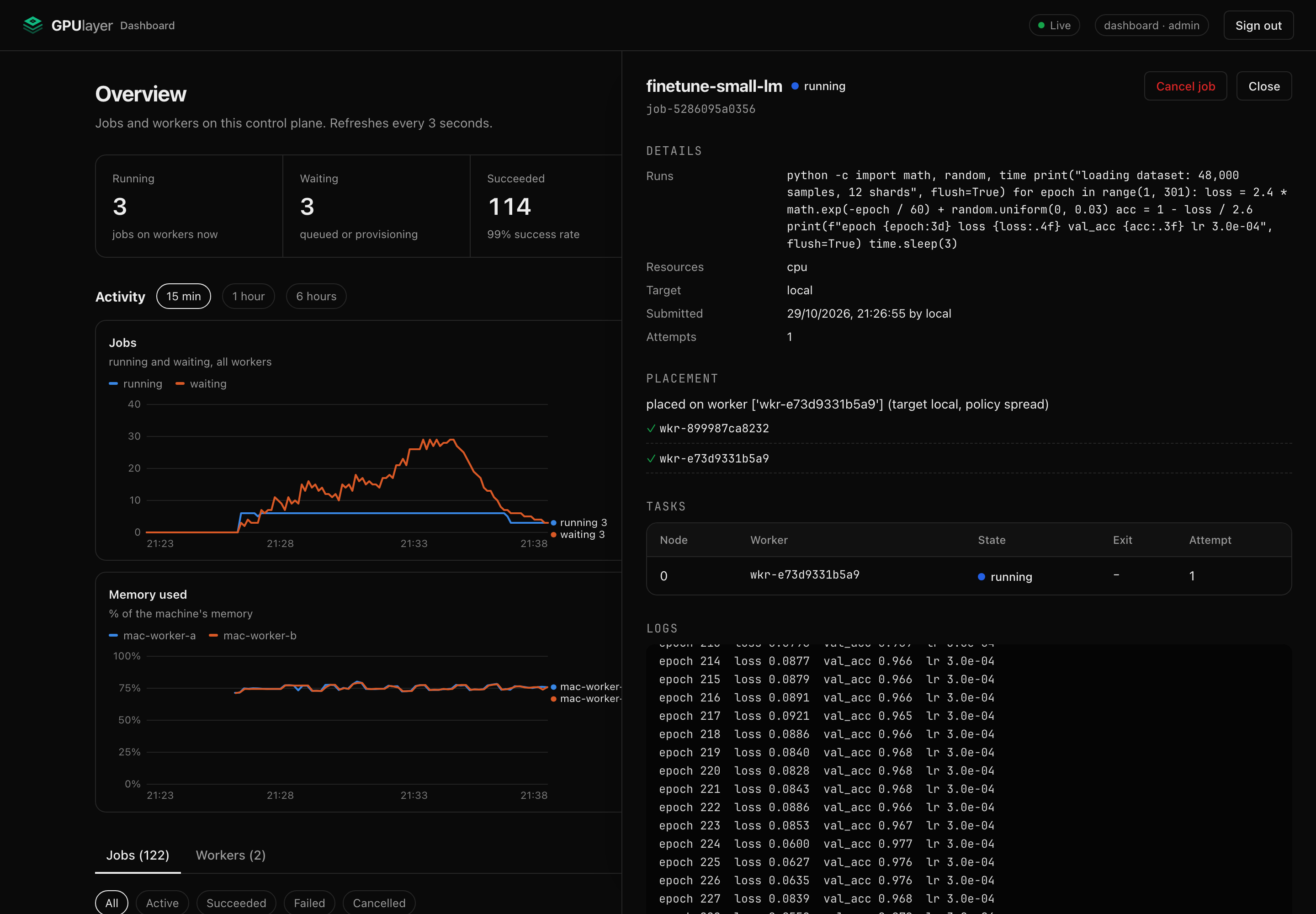

A running job: placement, tasks and live logs

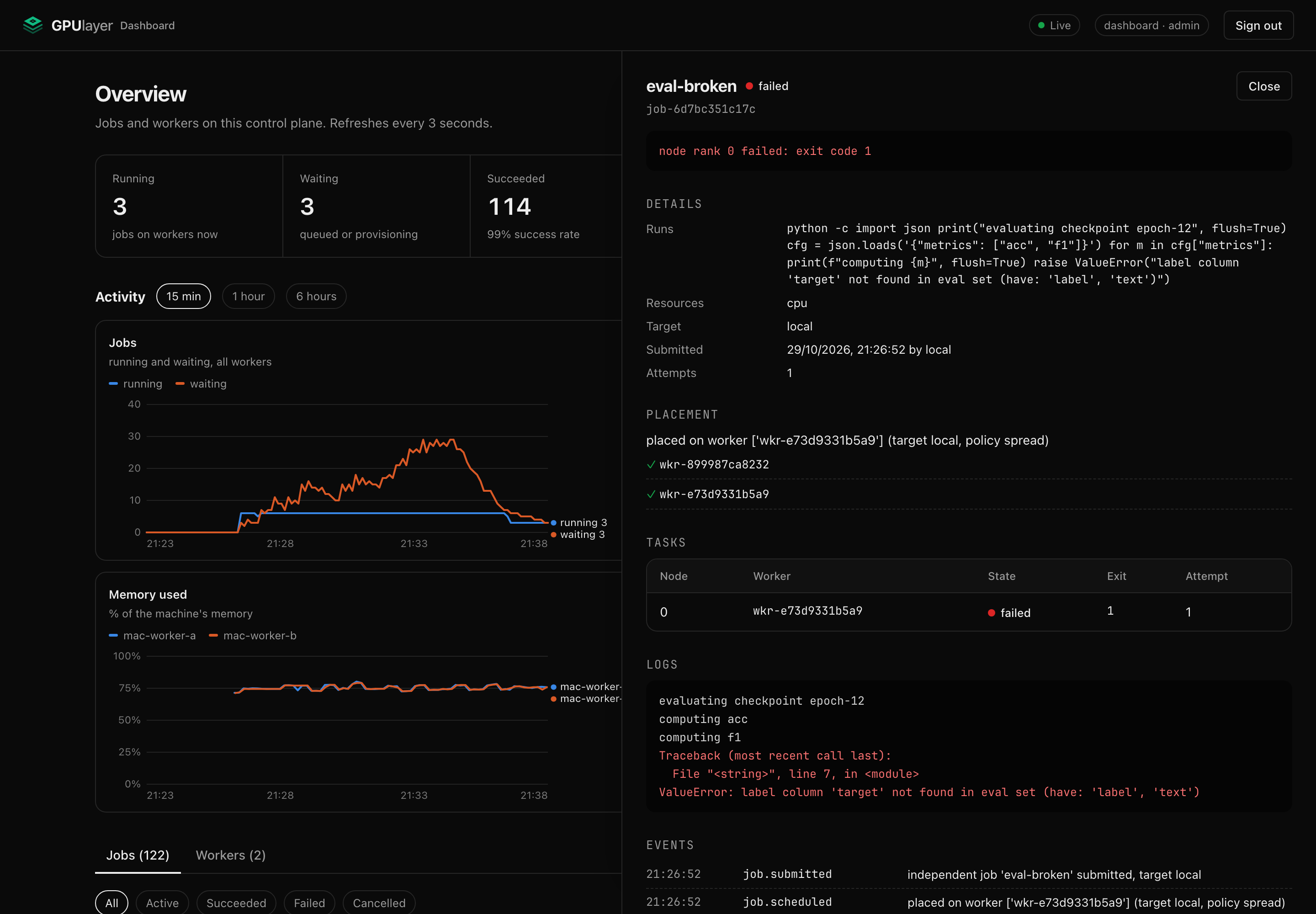

A failed job with its traceback

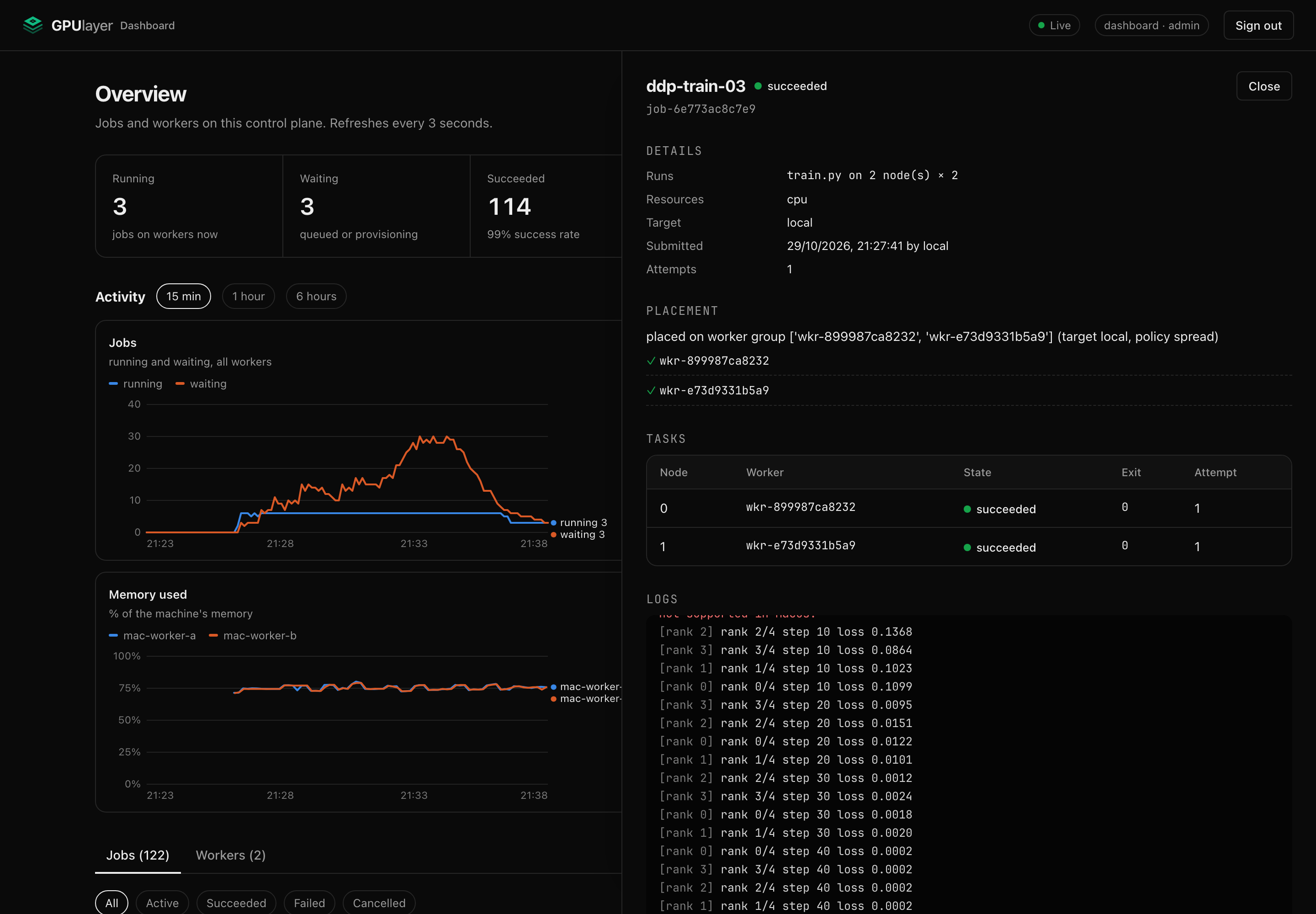

A 2 x 2 DDP job: every log line tagged with the rank that wrote it

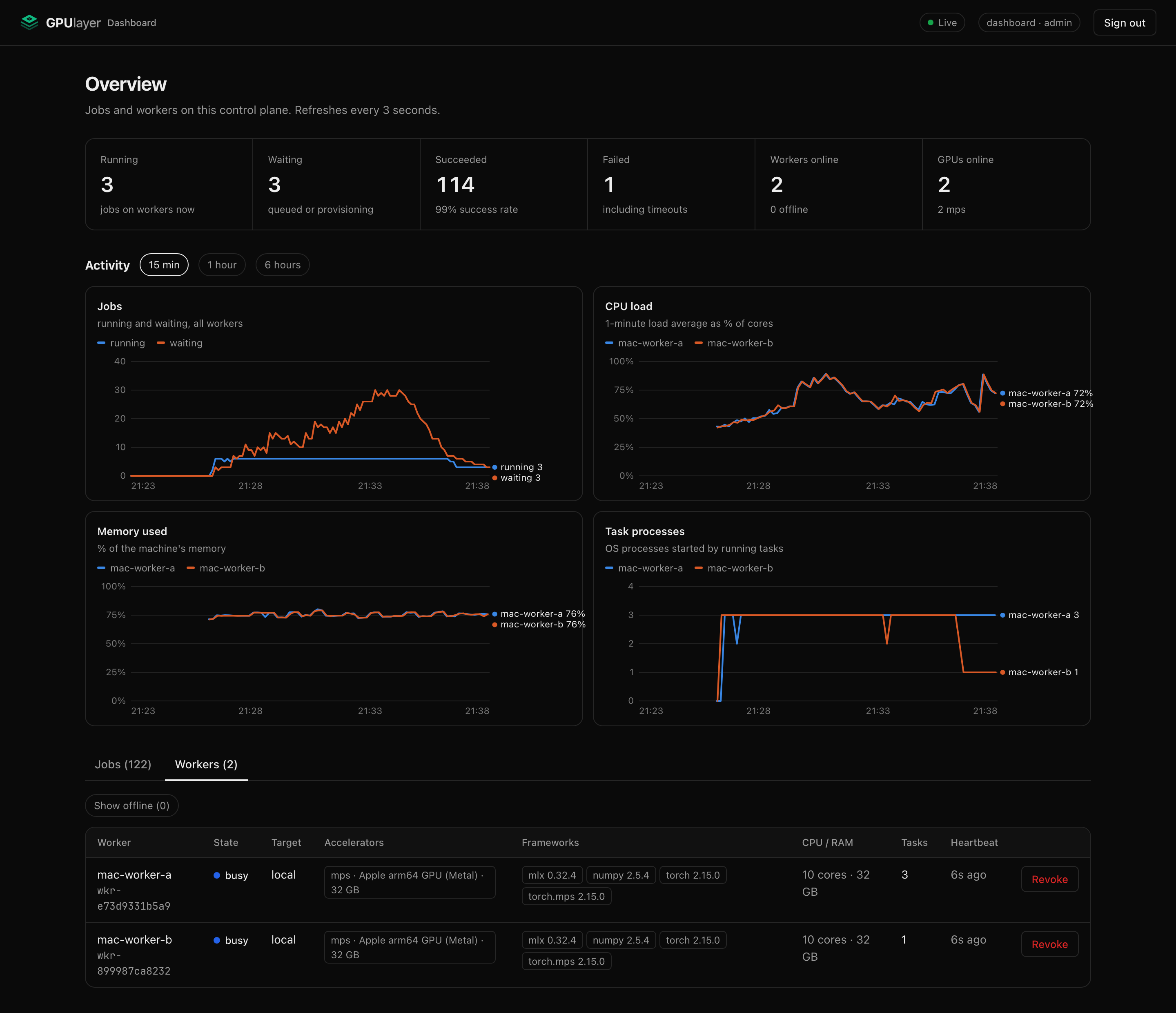

Workers with their GPUs, frameworks and load

Links can open a view directly: /ui/?tab=workers, /ui/?range=15 (minutes: 15, 60 or 360) and /ui/?job=<job id>.

It refreshes every 3 seconds (charts every 10 seconds) and uses the same API and permissions as the CLI. Tokens stay in the browser tab's session storage. Pages are served with a strict Content-Security-Policy, and job output is always inserted as text, never as HTML.

Worker telemetry

Every 10 seconds each worker sends a resource sample with its heartbeat: 1-minute load average and core count, memory used and total, the number of OS processes belonging to its running tasks, and on NVIDIA machines each GPU's utilisation and memory (from nvidia-smi). Nothing needs extra privileges or packages. Apple GPU utilisation is not reported because reading it requires root.

The control plane keeps one sample per worker every 5 seconds for 24 hours, in its own database. Samples never leave your deployment. GET /v1/metrics/history?minutes=60 returns them with job activity for the dashboard; Prometheus gets the latest values as gauges.

Prometheus metrics

GET /metrics returns the Prometheus text format. It needs a bearer token with the metrics, submitter or admin role. A metrics token can read metrics and nothing else:

bash

gpulayer token create prometheus --role metrics > prometheus-token
gpulayer metrics            # print the same text locally, embedded or against a server

Metric	Type	Labels	Meaning
`gpulayer_jobs`	gauge	`state`	jobs in each state now
`gpulayer_tasks`	gauge	`state`	tasks assigned or running now
`gpulayer_workers`	gauge	`state`, `origin`	registered workers
`gpulayer_accelerators`	gauge	`accelerator`	usable GPUs on online workers
`gpulayer_queue_oldest_seconds`	gauge		age of the oldest queued job
`gpulayer_jobs_submitted_total`	counter	`workload_type`, `target`	jobs submitted
`gpulayer_jobs_finished_total`	counter	`state`	jobs that finished, by final state
`gpulayer_tasks_lost_total`	counter		tasks whose worker stopped heartbeating
`gpulayer_job_run_seconds`	histogram	`state`	first task start to end
`gpulayer_job_queue_wait_seconds`	histogram	`target`	submission to first start
`gpulayer_worker_load1`	gauge	`worker`, `worker_id`	1-minute load average
`gpulayer_worker_cpu_count`	gauge	`worker`, `worker_id`	CPU cores
`gpulayer_worker_memory_used_bytes` / `_total_bytes`	gauge	`worker`, `worker_id`	memory
`gpulayer_worker_processes`	gauge	`worker`, `worker_id`	OS processes of running tasks
`gpulayer_worker_running_tasks`	gauge	`worker`, `worker_id`	tasks running
`gpulayer_gpu_utilization_ratio`	gauge	`worker`, `worker_id`, `gpu`	NVIDIA GPU utilisation, 0 to 1
`gpulayer_gpu_memory_used_bytes`	gauge	`worker`, `worker_id`, `gpu`	NVIDIA GPU memory in use
`gpulayer_info`	gauge	`api_version`	always 1

Counters and histograms are stored in the metadata database, so they keep increasing across restarts and gpulayer gc. Histogram buckets are 1 s, 5 s, 15 s, 1 min, 5 min, 15 min, 1 h, 4 h and 24 h.

Grafana

deploy/monitoring/ has everything to run Prometheus and Grafana next to a GPUlayer server:

bash

cd deploy/monitoring
gpulayer token create prometheus --role metrics > gpulayer-token   # on the server machine
cp ~/.gpulayer/tls/cert.pem gpulayer-cert.pem                        # the server's certificate
# edit prometheus.yml: set the target to your server's address
docker compose up -d

Grafana runs on http://localhost:3001 with the GPUlayer dashboard provisioned. To use your own Grafana instead, import grafana/gpulayer-dashboard.json and pick your Prometheus data source. The dashboard shows running and waiting jobs, workers and GPUs online, 24-hour success rate, the oldest queued job, jobs by state, throughput, run time and queue wait (p50 and p95), workers by origin, GPUs by type, and lost tasks.

The metrics format has been checked with the official Prometheus client parser. The Compose setup and Grafana dashboard follow the standard formats but have not been run against a live Grafana in this repository yet.
